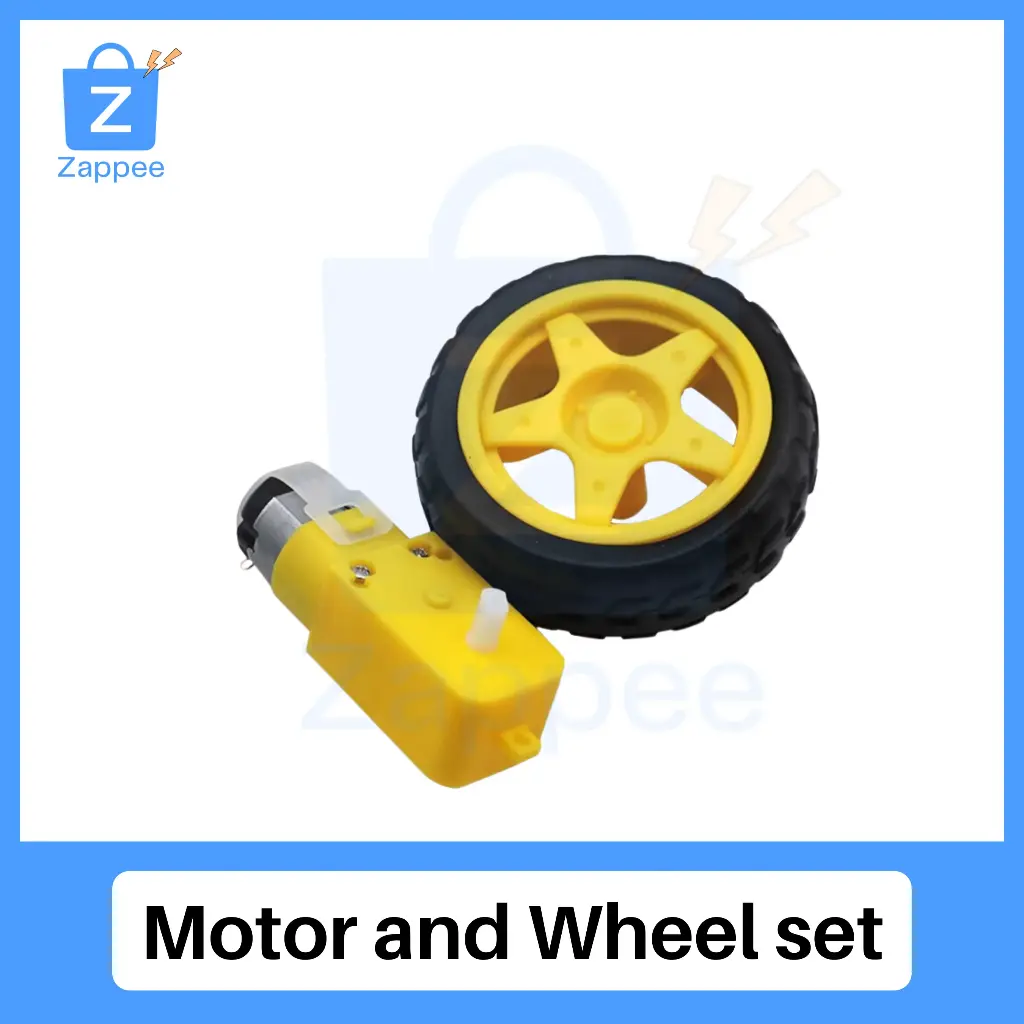

Motor and Wheel set

Highlights:

• Operating Voltage: 3V to 12V DC (recommended 6V to 8V)
• Maximum Torque: 800 gf·cm at 3V
• No-Load Speed:
  • ~100 RPM at 3V
  • ~200 RPM at 6V
  • ~400 RPM at 12V
• Gear Ratio: 1:48
• Load Current: 70 mA (max 250 mA) at 3V
• Wheel Diameter: 65 mm

Description:

The TT Motor 130 is a compact and efficient DC gear motor designed for smart car and robotic applications. It operates within a voltage range of 3V to 12V DC, providing a balance of speed and torque. With a 1:48 gear reduction ratio, it ensures smooth and controlled movement, making it ideal for Arduino-based projects, educational robotics, and DIY automation tasks.

Features:

• Versatile Voltage Range: Operates from 3V to 12V DC, with optimal performance at 6V to 8V.
• High Torque Performance: Generates up to 800 gf·cm at 3V, offering strong output for robotic applications.
• Optimized Gear Ratio: 1:48 gear reduction ensures a balance between speed and torque.
• No-Load Speed Variability: Runs at different speeds depending on voltage input: ~100 RPM at 3V, ~200 RPM at 6V, and ~400 RPM at 12V.
• Energy Efficient: Consumes only 70 mA under normal operation at 3V, with a peak draw of 250 mA.
• Compatible Wheel Design: Comes with a 65 mm diameter wheel for stability and easy assembly.

Packaging List:

• 1 x TT Motor 130 DC Gear Motor
• 1 x 65 mm Diameter Wheel
