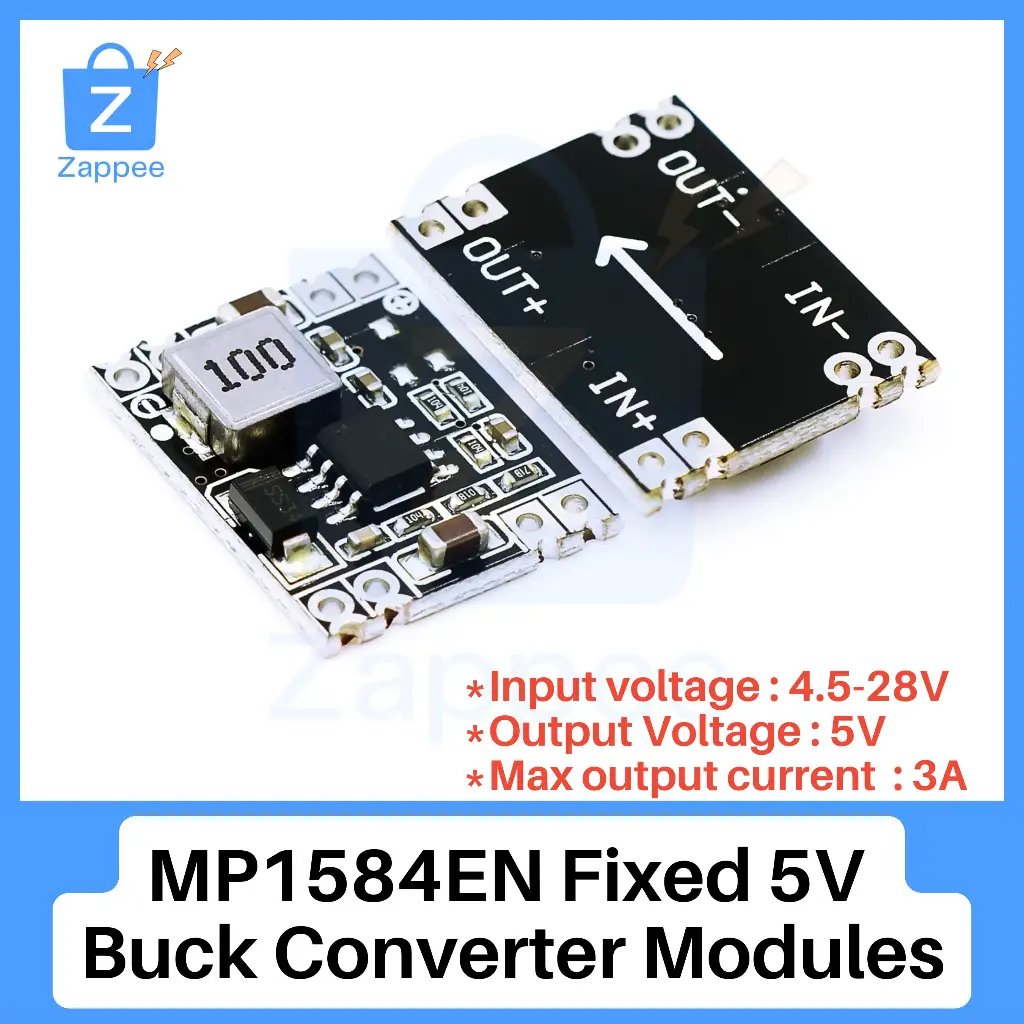

MP1584EN Fixed 5V Buck Converter Modules

Highlights:

• Input Voltage: 4.5V to 28V
• Output Voltage: Fixed at 5V
• Output Current: Up to 3A
• Efficiency: Up to 96%
• Switching Frequency: 1.5MHz (maximum)
• Dimensions: Approximately 22.5mm x 17.2mm x 4.3mm

Description:

The MP1584EN is an ultra-small, high-efficiency DC-DC buck converter module designed to step down input voltages ranging from 4.5V to 28V to a stable 5V output. Its compact size and high efficiency make it ideal for applications where space and power efficiency are critical, such as Arduino projects, battery-powered devices, and other electronic applications.

Features:

• High Efficiency: Achieves up to 96% efficiency, minimizing energy loss and heat generation.
• High Switching Frequency: Operates at a switching frequency up to 1.5MHz, allowing for a compact design with small external components.
• Compact Size: Measuring approximately 22.5mm x 17.2mm x 4.3mm, it fits easily into space-constrained applications.
• High Output Current: Capable of delivering up to 3A of continuous output current, suitable for powering various devices.
• Wide Input Voltage Range: Supports input voltages from 4.5V to 28V, providing flexibility for different power sources.
• Low Output Ripple: Designed to provide a stable output with minimal ripple voltage, ensuring reliable performance for sensitive electronics.

Packaging List:

• 1 x MP1584EN Fixed 5V Buck Converter Modules
