Highlights:
- Microcontroller: STM32F103C8T6 with ARM Cortex-M3 core, operating at 72 MHz.
- Flash Memory: 64 KB
- SRAM: 20 KB
- Pre-Soldered Headers: Allows for straightforward connectivity without additional soldering.
Description:

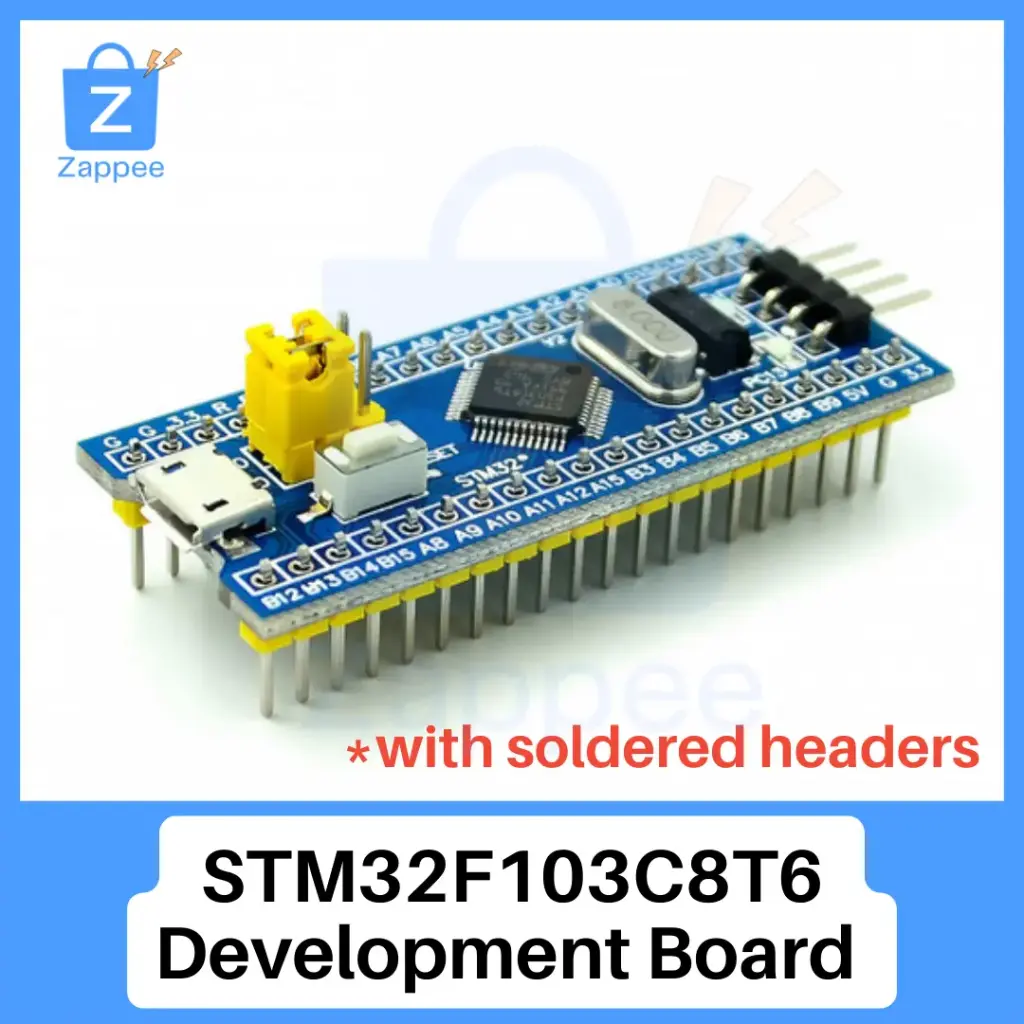

The STM32F103C8T6 "Blue Pill" Development Board is tailored for those venturing into ARM-based microcontroller projects. Equipped with the STM32F103C8T6 MCU, it boasts a 32-bit ARM Cortex-M3 processor running at 72 MHz, complemented by 64 KB of flash memory and 20 KB of SRAM. The inclusion of pre-soldered headers ensures that users can promptly connect the board to breadboards or other peripherals, streamlining the development process.
Features:
- USB Interface: On-board mini USB port facilitates power supply and USB communication.
- Indicators: Includes power and test indicator LEDs for operational feedback.
- Reset Functionality: Equipped with an on-board reset button.
- Voltage Regulation: Features a 3.3V regulator providing up to 100 mA.
- Pin Accessibility: All GPIO pins are clearly labeled and accessible via pre-soldered headers.
Packaging List:
- 1× STM32F103C8T6 Development Board with pre-soldered headers.
